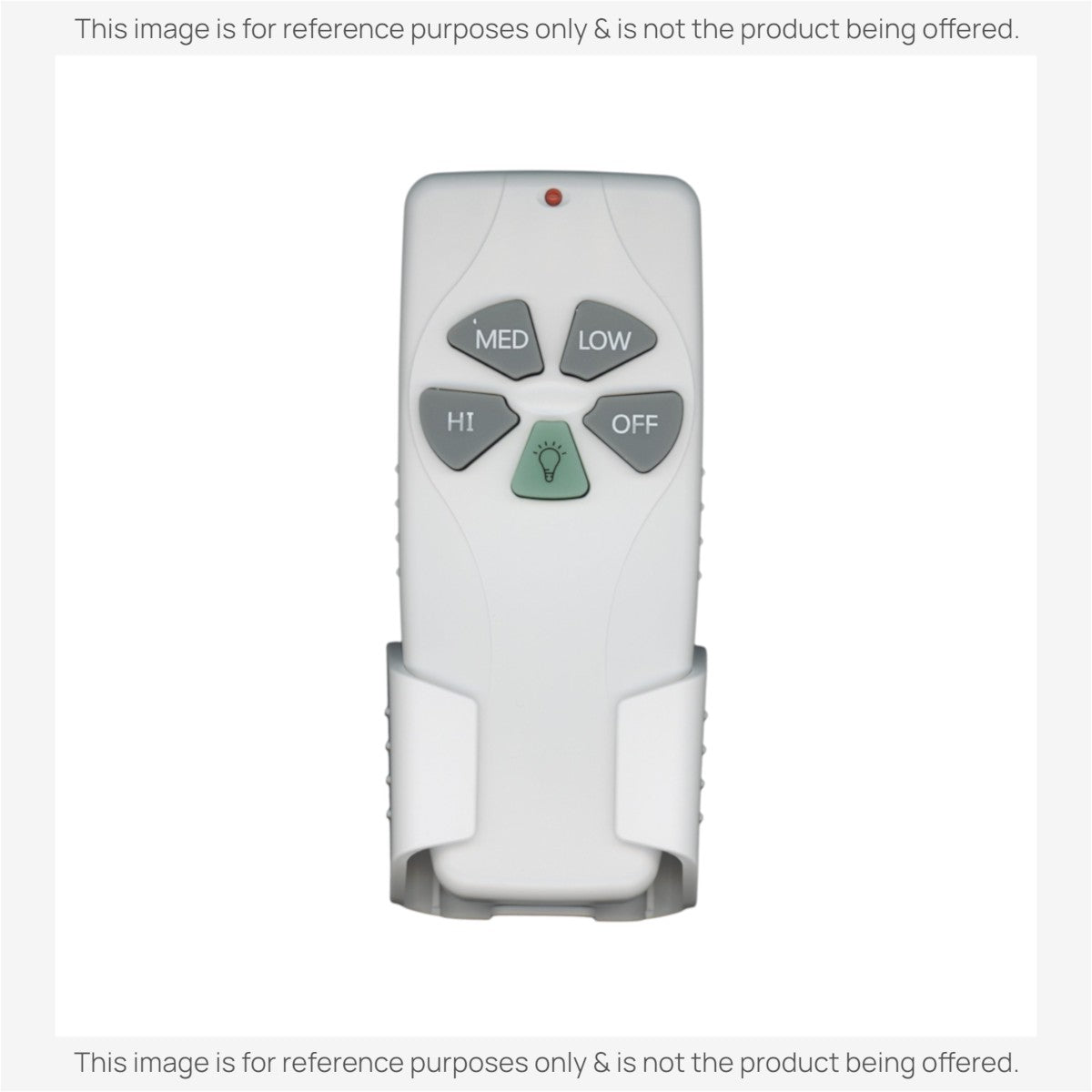

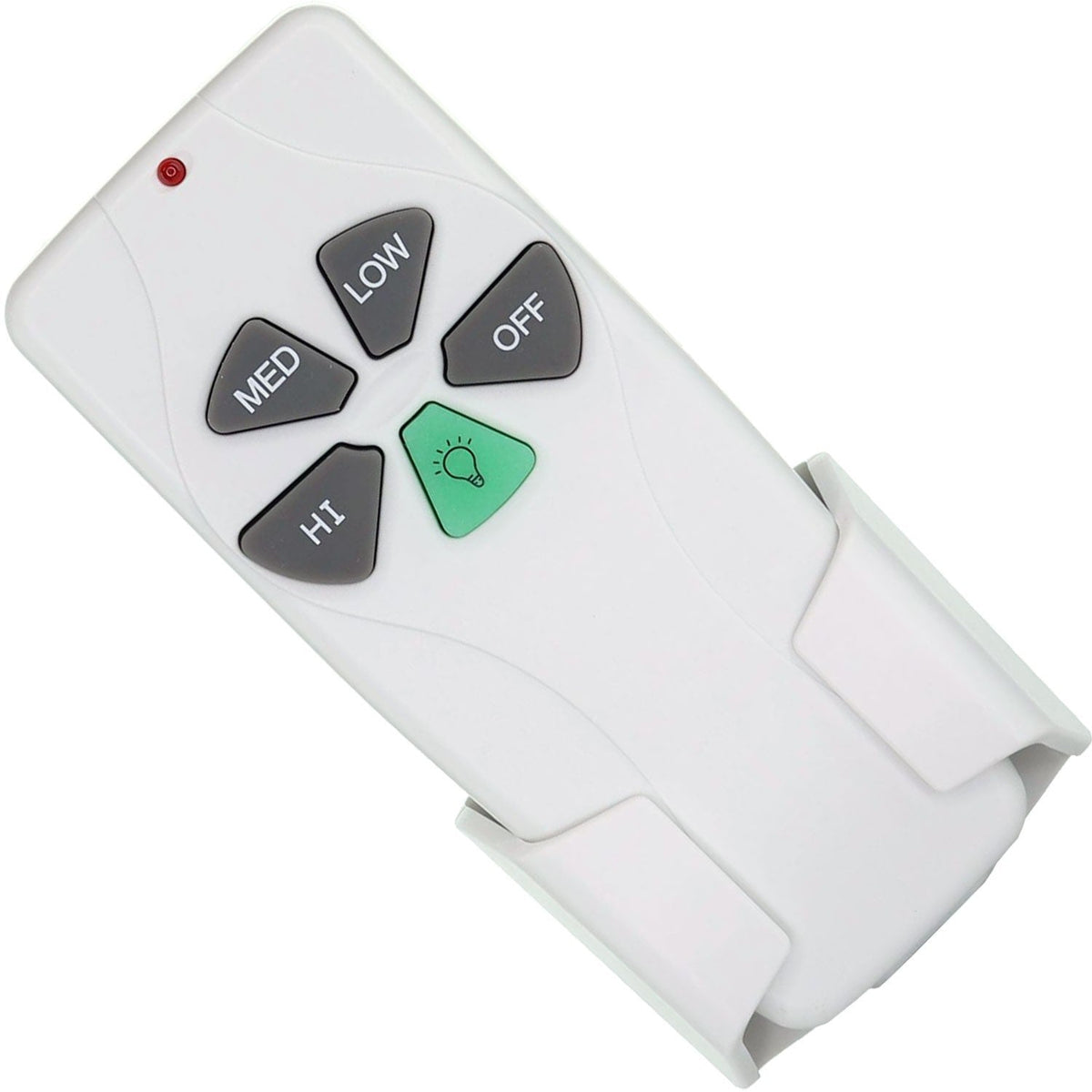

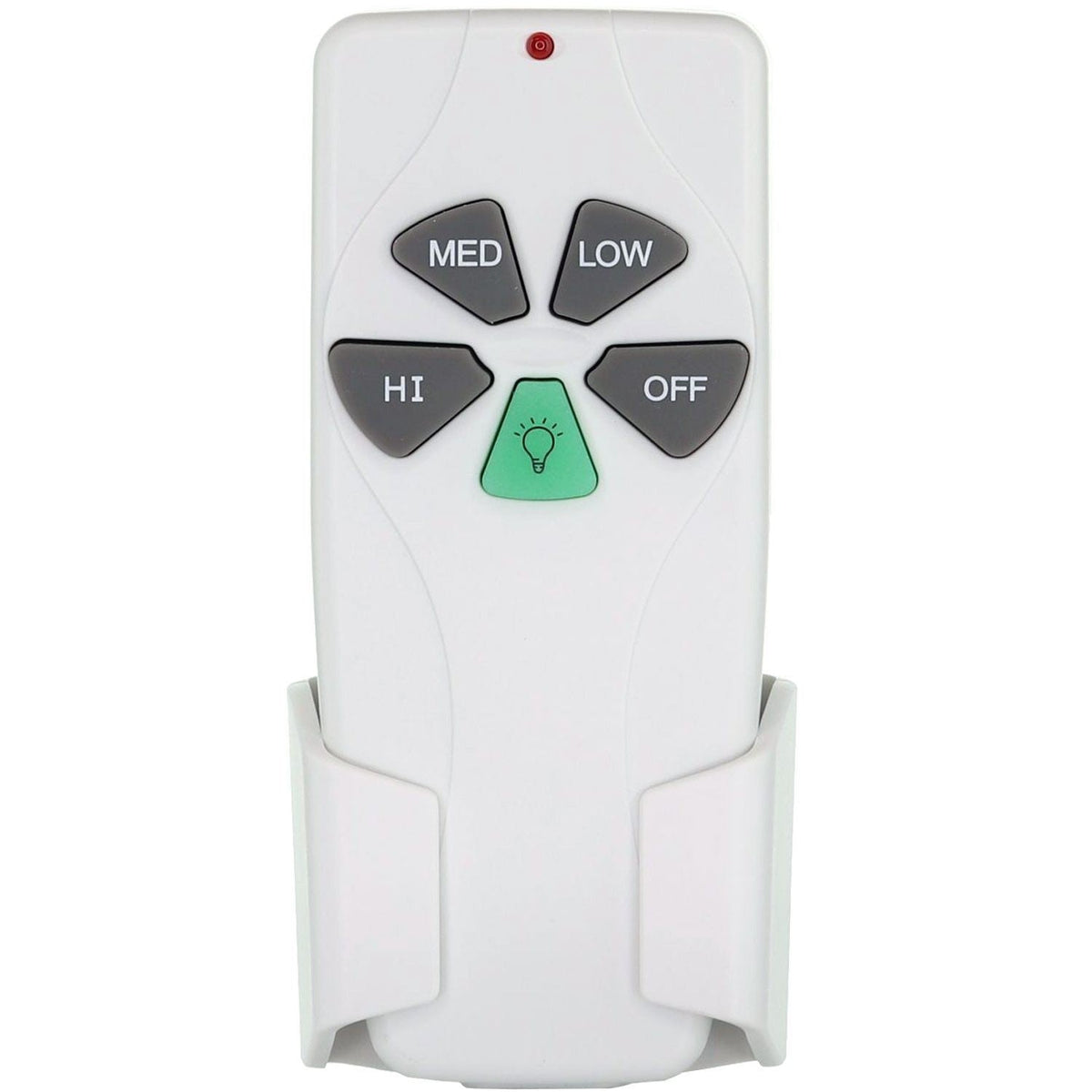

This remote will directly replace your original Model KUJCE9103 for Harbor Breeze, Hampton bay ceiling fans.
ALSO REPLACES: FAN-11T 11T Associated numbers: Model CF-1, 2ANHJCF1

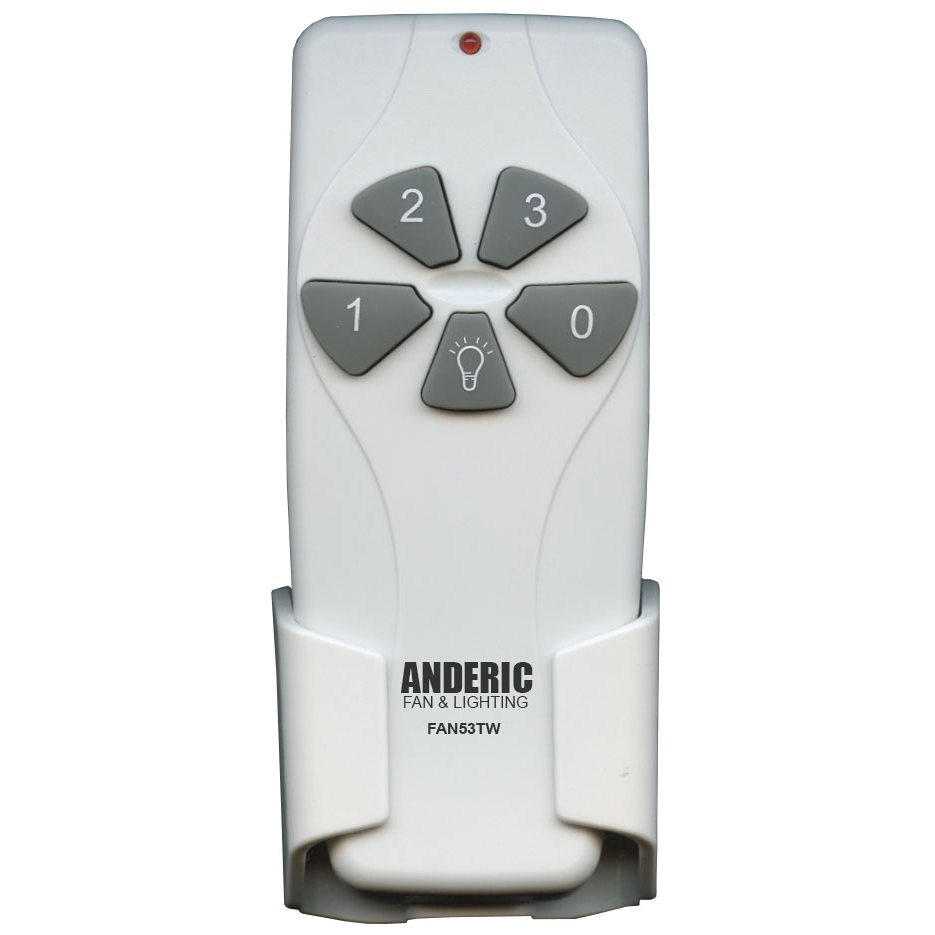

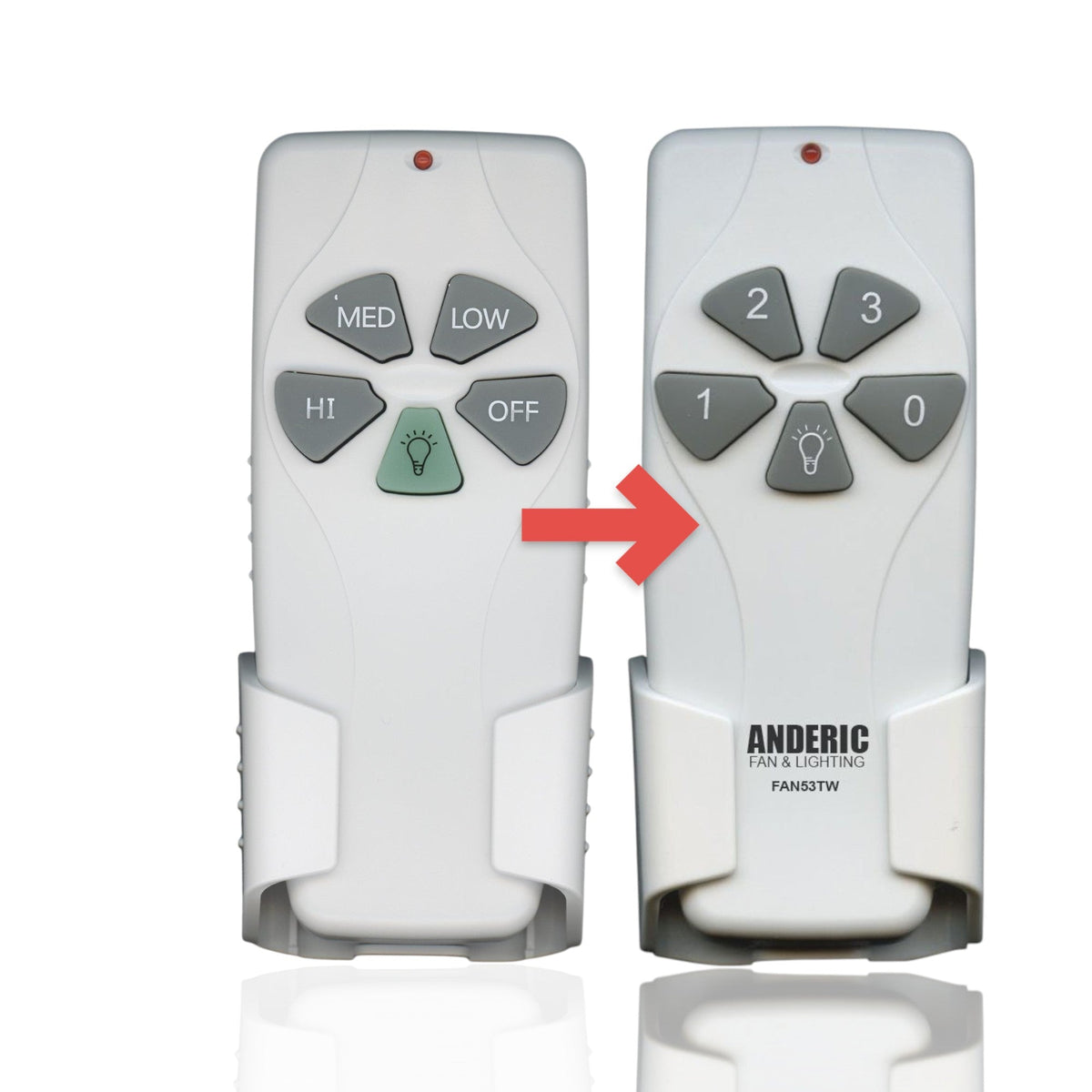

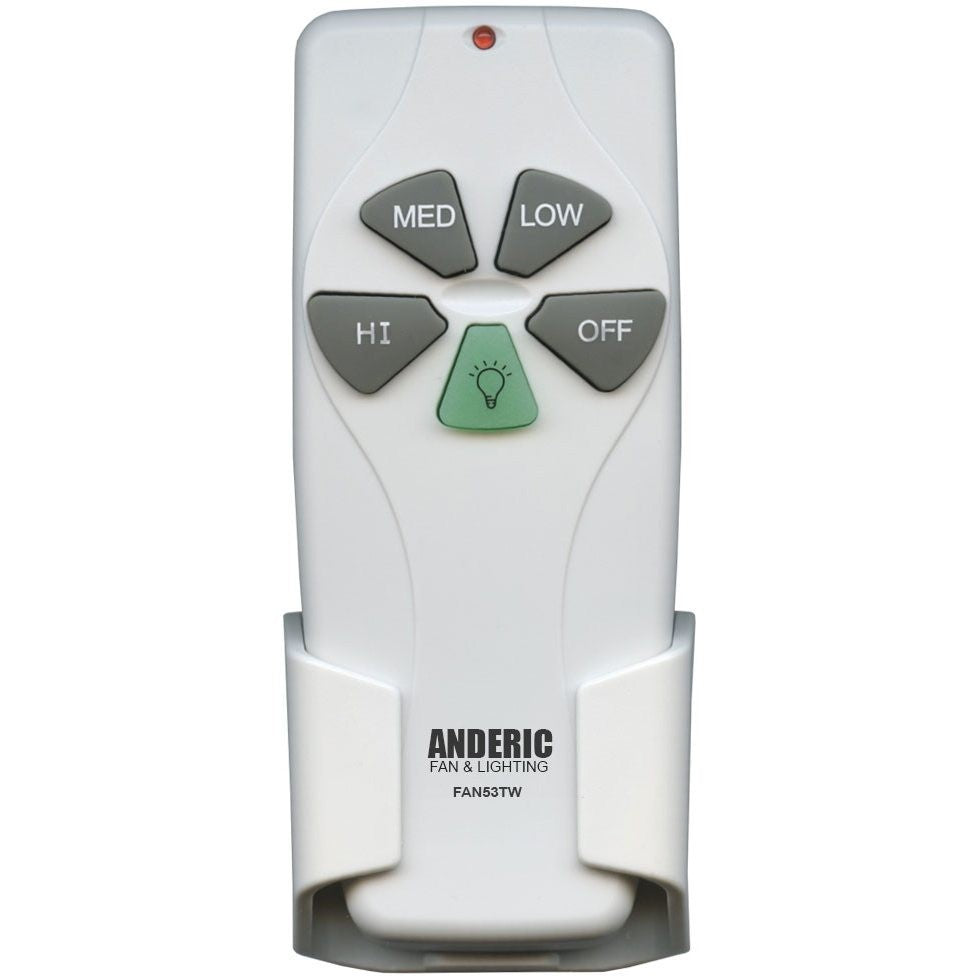

We do however have a replacement Kit (Remote/Receiver) that will work. The Anderic FAN35T/UC7067FMRX KIT. Just make sure that the receiver will fit in the Canopy of your ceiling fan. If you have a different shaped receiver then this kit will not work for you.

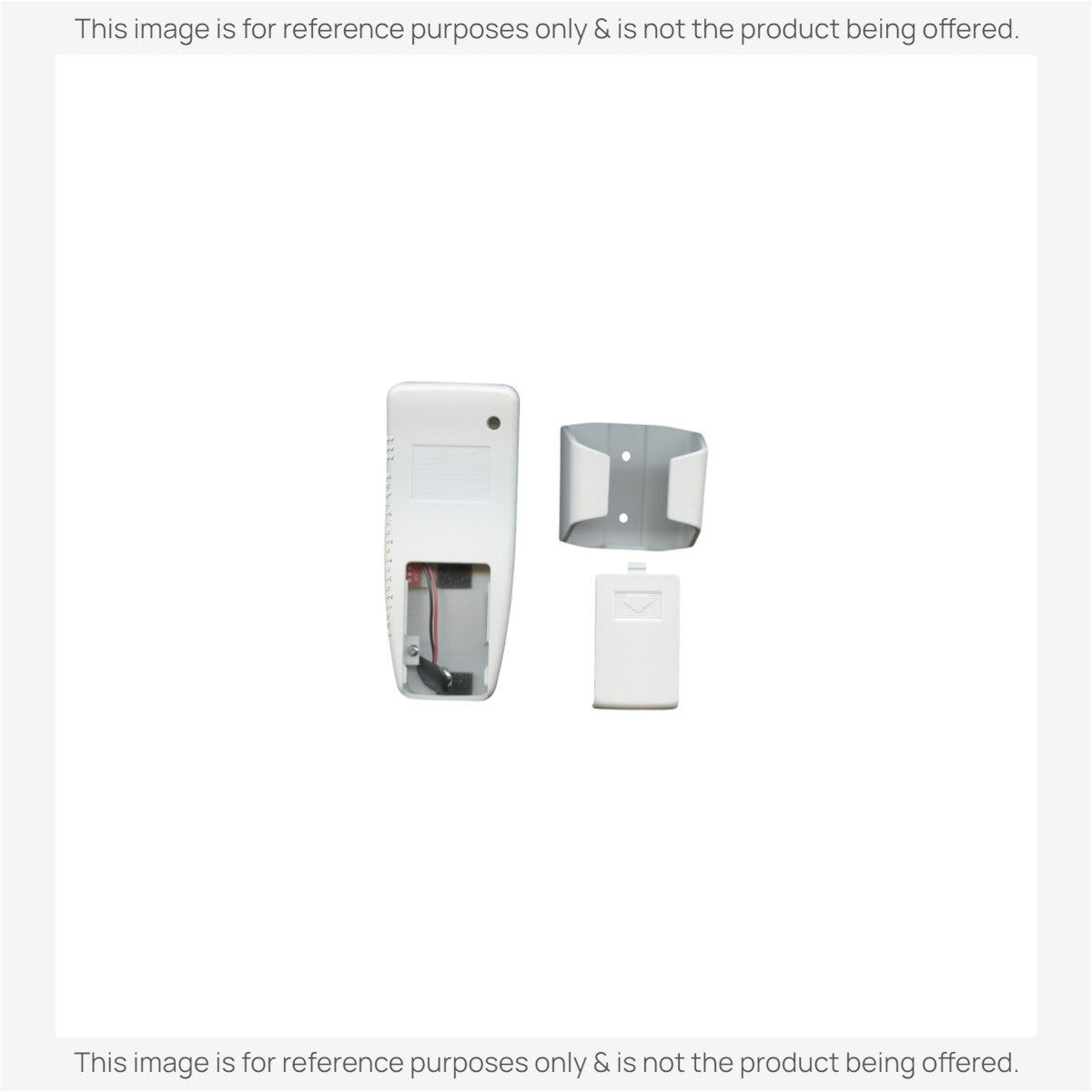

DIRECTIONS: 1: Remove the battery cover from the remote. 2: Slide the frequency switches (blue box with 4 white switches) to your choice of up or down position. 3: Replace the battery cover on the remote 4: Locate the fan receiver and match the frequency switches to the same positions as set on your remote. 5: test function, both remote and receiver must have power
To find the Receiver: Most receivers for your ceiling fans are in the canopy. This is the dome near the ceiling. Another place could be on top of the motor assembly, or below the light kit.
