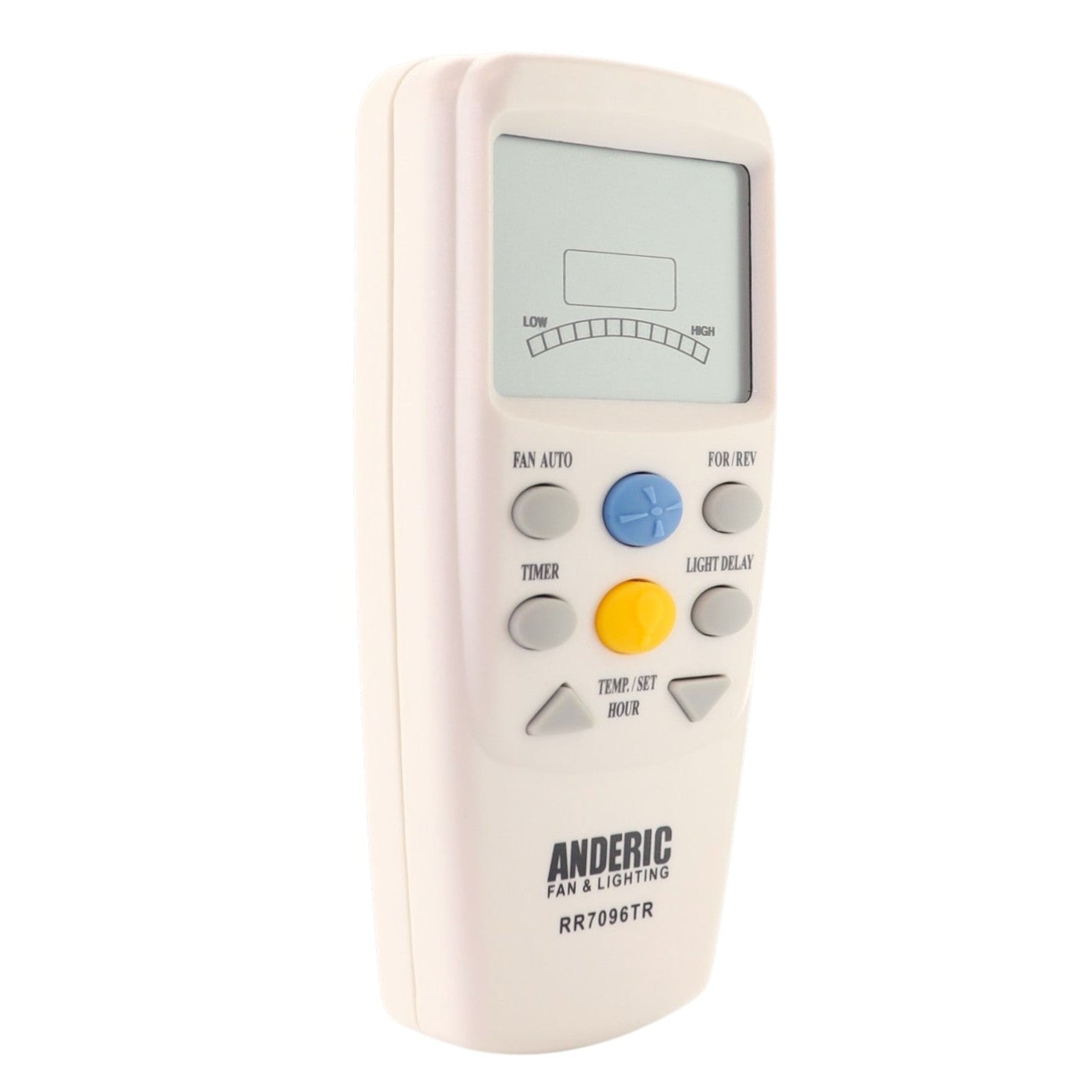

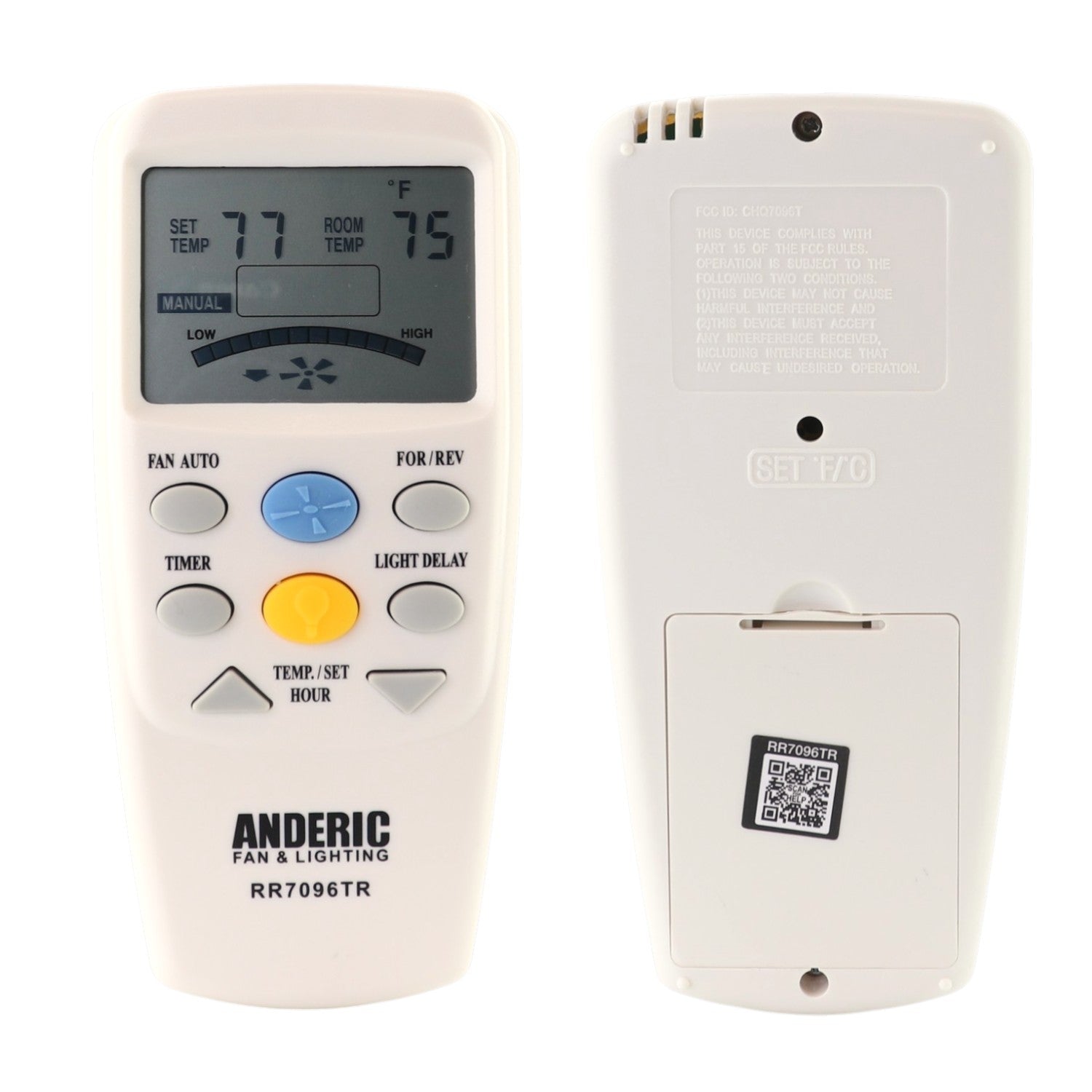

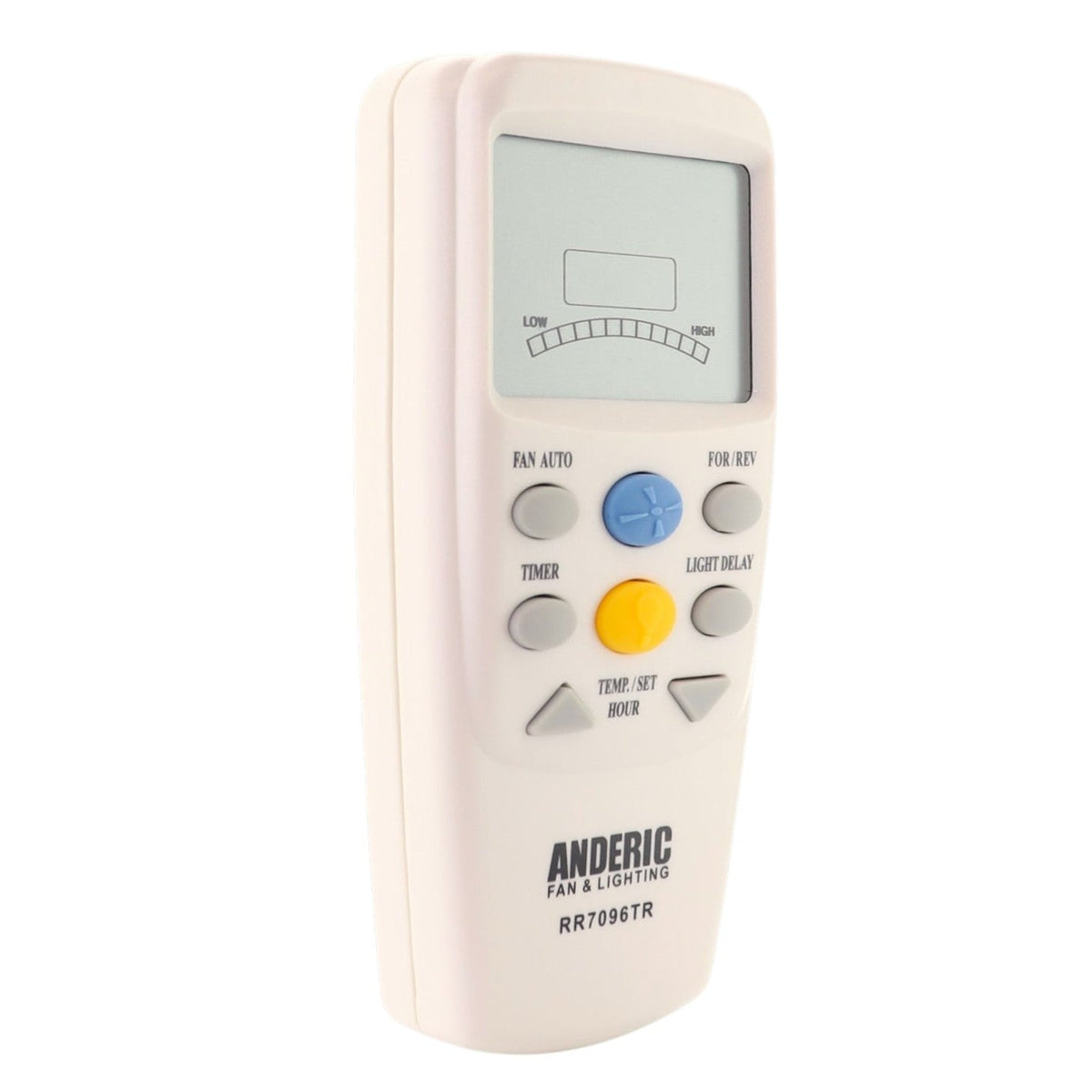

The Anderic RR7096TR thermostatic remote is a high-quality replacement for the original Hampton Bay CHQ7096T remote and is manufactured by the same factory that produced the original. Designed for seamless compatibility, this remote delivers full fan control with features such as Forward/Reverse (FOR/REV), fan speed settings, dimmable light control, and temperature-based automation. It also includes specialized functions such as Light Delay, Fan Auto, and Light Timer to enhance comfort and energy efficiency.
Compatible with receivers (but not limited to): UC7067FCRX, UC70960TX, and UC7067REVB
Please note that this remote only supports down-light dimming and is not compatible with CHQ8BT7096T models that feature a red light button, nor is it fully compatible with Windward III fans. For optimal dimming performance, incandescent bulbs are required.
Package Includes:
Anderic RR7096TR Remote Control
1 Wall Mount
2x Wall Mount Screws
Installation instructions

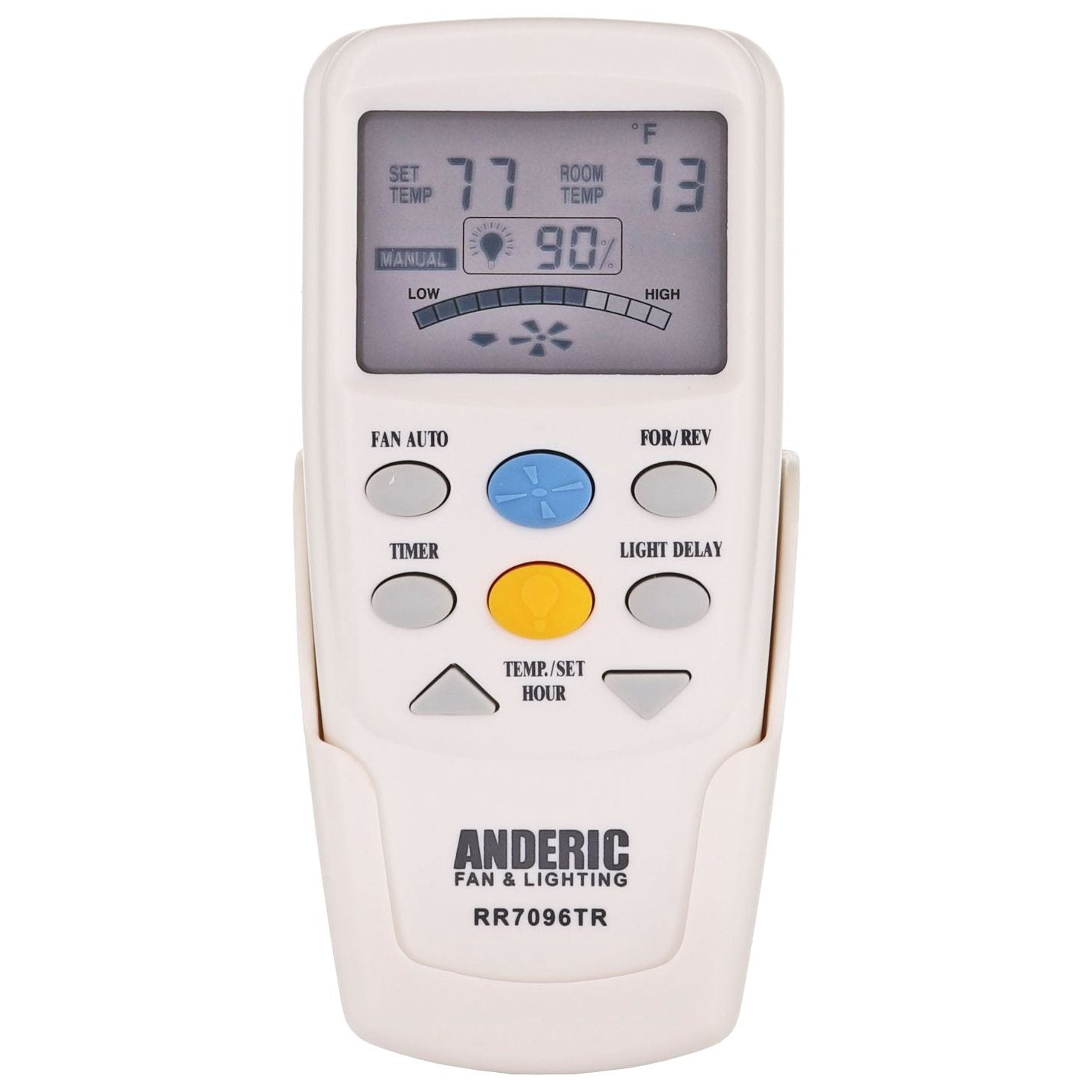

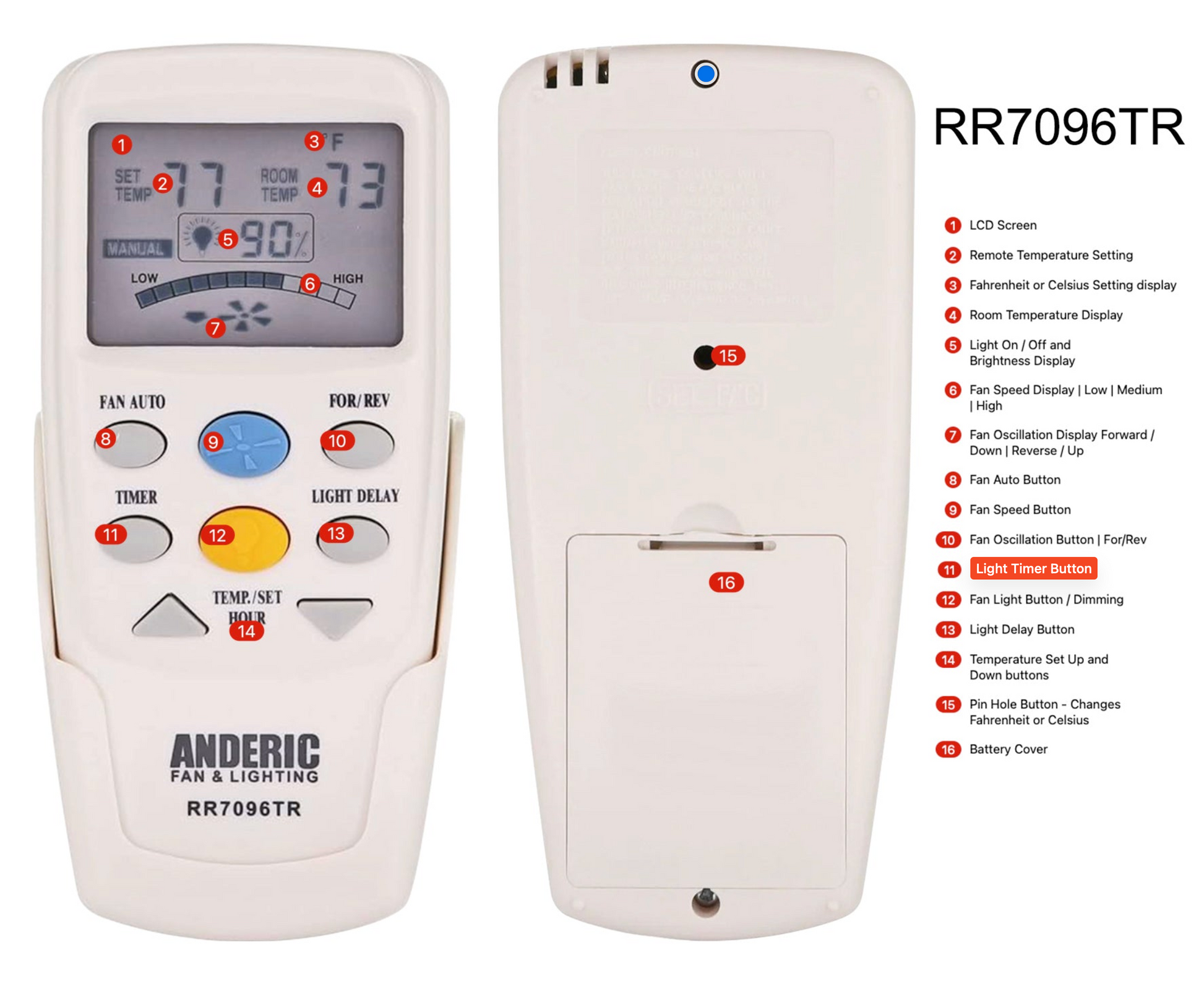

Button Functions:
Fan Auto (8) – Turns the fan speeds ON or OFF automatically depending on the room temperature setting.
Fan Speed (9) – Press to adjust the fan speeds manually.
For/Rev (10) – Press to change the direction (oscillation) of the fan for Summer and Winter.
Timer (11) – Press to turn on/off the light timer.
Light (12) – Press to turn on/off or dim the lights manually.
Light Delay (13) – Press to set light delay.
Up/Down Arrows (14) – Press the arrows up or down to set the temperature and the timers.
